MR Scapula WO or W/WO Protocol

Revised - 2/22/19
Charge as Scapula WO or W/WO

  • Cardiac Coil
Plane Weighting Mode Slice Gap Fat Sat FOV Scan Range
AXIAL T1 TSE 4mm 1mm None 20cm Cover entire scapula
AXIAL T2 Fat Sat (TE=50-60) TSE 4mm 1mm SPAIR 20cm Cover entire scapula
SAG T1 TSE 4mm 1mm None 22cm Perpendicular to scapula
SAG T2 Fat Sat (TE=50-60) TSE 4mm 1mm SPAIR 22cm Perpendicular to scapula
COR STIR TSE 4mm 1mm STIR 25cm Parallel to scapula
COR PRE(if giving gad for infection/osteo) T1 TSE 4mm 1mm None 25cm Same as COR STIR
POST CONTRAST
AXIAL T1 FS TSE 4mm 1mm SPIR 20cm Same as pre
COR T1 FS TSE 4mm 1mm SPIR 22cm Same as pre
SAG T1 FS TSE 4mm 1mm SPIR 22cm Same as pre

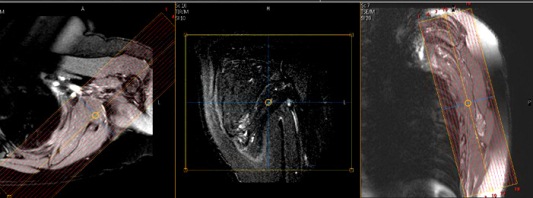

MR Scapula Image-Coronal Slice Position
Coronal Slice Positioning

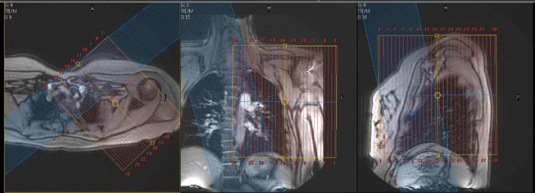

MR Scapula Image-Sag Slice Position
Sagittal Slice Positioning

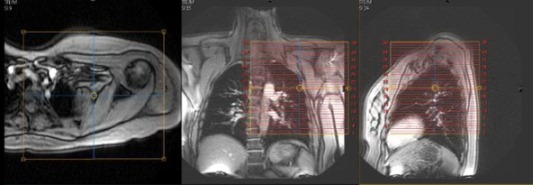

MR Scapula Image-Axial Slice Positioning
Axial Slice Positioning
