MR Brain and Orbits WO Neuro Protocol

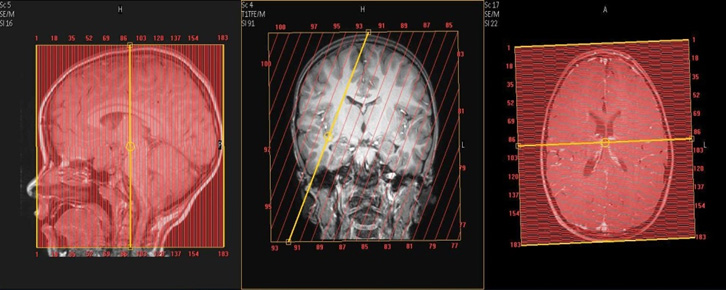

Orbits Only Coronal Coverage: Anterior margin of globe to anterior surface of pons, perpendicular to axis of the orbital segment of the optic nerves.
Orbits Only Axial Coverage: Superior margin of orbital rim to inferior margin of orbital rim, angled to be in-plane with the orbital segments of the optic nerves.
Whole Brain Sagittal Coverage: Angle to interhemispheric fissure. Cover at least 1cm above vertex through skull base. Cover entire nose.
Whole Brain Axial Coverage: Angle to corpus callosum. Cover at least 1cm above vertex through skull base. Cover entire nose.
Last updated: 3/18/22
Charge as: Brain and Orbits WO
Scanner preference: Avoid MR1, if possible.
Coil: Head
| Plane | Weighting | Mode | Slice (mm) | Gap (mm) | FAT SAT | FOV (cm) | MPR | Notes |
|---|---|---|---|---|---|---|---|---|
| AXIAL | DWI | EPI | 3 | 0.3 | YES | 23 | no | Send only B1000 & ADC. Whole Brain coverage. Angle to Corpus. Cover Skull Base to Vertex. |
| SAG | T1 | 3D TSE | 0.7 - 1.0 | 0 | no | 23 | no | See whole brain sagittal coverage, above. |
| SAG | T2 FLAIR | 3D IR-TSE | 1 | 0 | YES | 23 | no | See whole brain sagittal coverage, above. |
| AXIAL | T2 | 3D TSE | 1 | 0 | no | 23 | no | See whole brain axial coverage above. |
| AXIAL | SWI | 3D GRE | 2 | -1 | no | 23 | no | Angle to Corpus. Cover skull base to vertex. Ok to add slices. |
| COR | STIR | 2D STIR | 2 | 0.25 | STIR | 17 | no | See orbits only coronal coverage above. |
| COR | T1 | 2D TSE | 2 | 0.25 | Dixon: InPhase & Water only | 17 | no | See orbits only coronal coverage above. |
