MR Brain and Orbits WWO Neuro Protocol

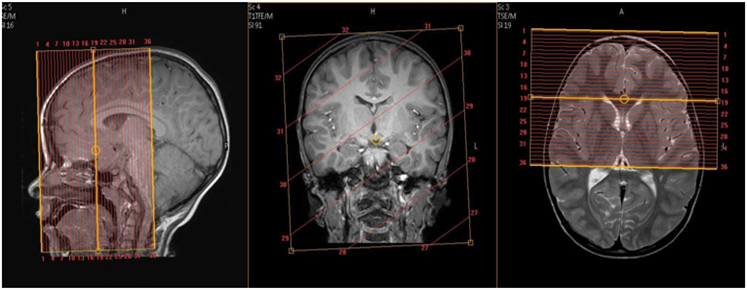

Orbits Only Coronal Coverage: Anterior margin of globe to anterior surface of pons, perpendicular to axis of the orbital segment of the optic nerves.

Orbits Only Axial Coverage:  Superior margin of orbital rim to inferior margin of orbital rim, angled to be in-plane with the orbital segments of the optic nerves.

Whole Brain Sagittal Coverage:  Angle to interhemispheric fissure. Cover at least 1cm above vertex through skull base. Cover entire nose.

Whole Brain Axial Coverage:  Angle to corpus callosum. Cover at least 1cm above vertex through skull base. Cover entire nose.

Last updated: 3/18/22
Charge as: Brain & Orbits WWO
Scanner preference: Avoid MR1, if possible.
Coil: Head

Protocol for all scanners except MR1:

Plane Weighting Mode Slice (mm) Gap (mm) FAT SAT FOV (cm) MPR Notes
AXIAL DWI EPI 3 0.3 YES 23 no Send only B1000 & ADC. Whole Brain coverage. Angle to Corpus. Cover Skull Base to Vertex.
SAG T1 3D TSE 0.7 - 1.0 0 no 23 no See whole brain sagittal coverage, above.
AXIAL T2 3D TSE 1 0 no 23 no See whole brain axial coverage above.
AXIAL SWI 3D GRE 2 -1 no 23 no Angle to Corpus. Cover skull base to vertex. Ok to add slices.
COR STIR 2D STIR 2 0.25 STIR 17 no See orbits only coronal coverage above.
COR T1 2D TSE 2 0.25 Dixon: InPhase & Water only 17 no See orbits only coronal coverage above.
HAND INJECT CONTRAST
SAG T2 FLAIR 3D IR-TSE 1 0 YES 23 no See whole brain sagittal coverage, above.
SAG T1 3D TSE 1 0 YES 23 no See whole brain sagittal coverage, above.
COR T1 2D TSE 2 0.25 Dixon: InPhase & Water only 17 no See orbits only coronal coverage above.
AXIAL T1 2D TSE 2 0.25 Dixon: InPhase & Water only 17 no See orbits only axial coverage above.

Protocol for MR1:

Plane Weighting Mode Slice Gap FAT SAT FOV Notes
AXIAL DWI 2mm Voxel SE EPI 3mm 0.3mm SPIR 23cm Angle to Corpus- Skull Base to Vertex
SAG T1 3D TFE - - - 23cm NO ANGLE. Cover ears. MPR AXIAL PLANE.
AXIAL T2 3D - - - 23cm NO ANGLE. Cover at least 1cm above vertex through skull base. Cover entire nose.
COR T1 Orbits TSE 3mm 0.5mm None 18cm Lens to mid Pons
COR T2 STIR TSE 3mm 0.5mm STIR 18cm Lens to mid Pons
AXIAL T1 Orbits TSE 3mm 0.5mm None 18cm Occlusal plane to above orbits
AXIAL T2 Orbits FS TSE 3mm 0.5mm SPIR 18cm Occlusal plane to above orbits
HAND INJECT CONTRAST
+AXIAL FLAIR 3D - - - 23cm NO ANGLE. Cover at least 1cm above vertex through skull base. Cover entire nose.
+SAG T1 3D TFE - - - 23cm NO ANGLE. Cover ears. MPR AXIAL PLANE.
+AXIAL T1 Orbits FS TSE 3mm 0.5mm SPIR 18cm Occlusal plane to above orbits
+COR T1 Orbits FS TSE 3mm 0.5mm SPIR 18cm Lens to mid Pons
+OBL SAG L T1 FS (Optic Nerve) TSE 3mm 0.5mm SPIR 18cm Angle to Optic Nerve
+OBL SAG R T1 FS (Optic Nerve) TSE 3mm 0.5mm SPIR 18cm Angle to Optic Nerve
