MR MRV Brain WO or WWO Neuro Protocol
MRV WO:
Always acquired in both axial and coronal planes.
“M2D”= Multiple 2D. Multiple single slice acquisition. A number of slices are scanned in sequential order.

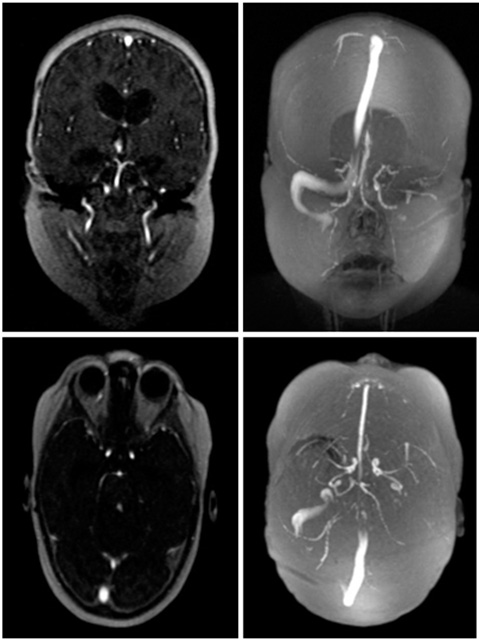

3D CE-MRV:
- Power inject contrast
- 3 acquisitions: Pre-contrast mask, 1 min post-injection, 3 min post-injection
- Create subtraction spinner 3D MIPs using mask and 1 min acquisition
Other notes:
Last updated: 09/26/22
Charge as: MRV WO or MRV WWO. If ordered as MRA/MRV, you may only charge for EITHER the MRV or the MRA. Never both.
Scanner preference: none
Coil: Head
| Plane | Weighting | Mode | Slice | Gap | FAT SAT | FOV | Notes |
|---|---|---|---|---|---|---|---|

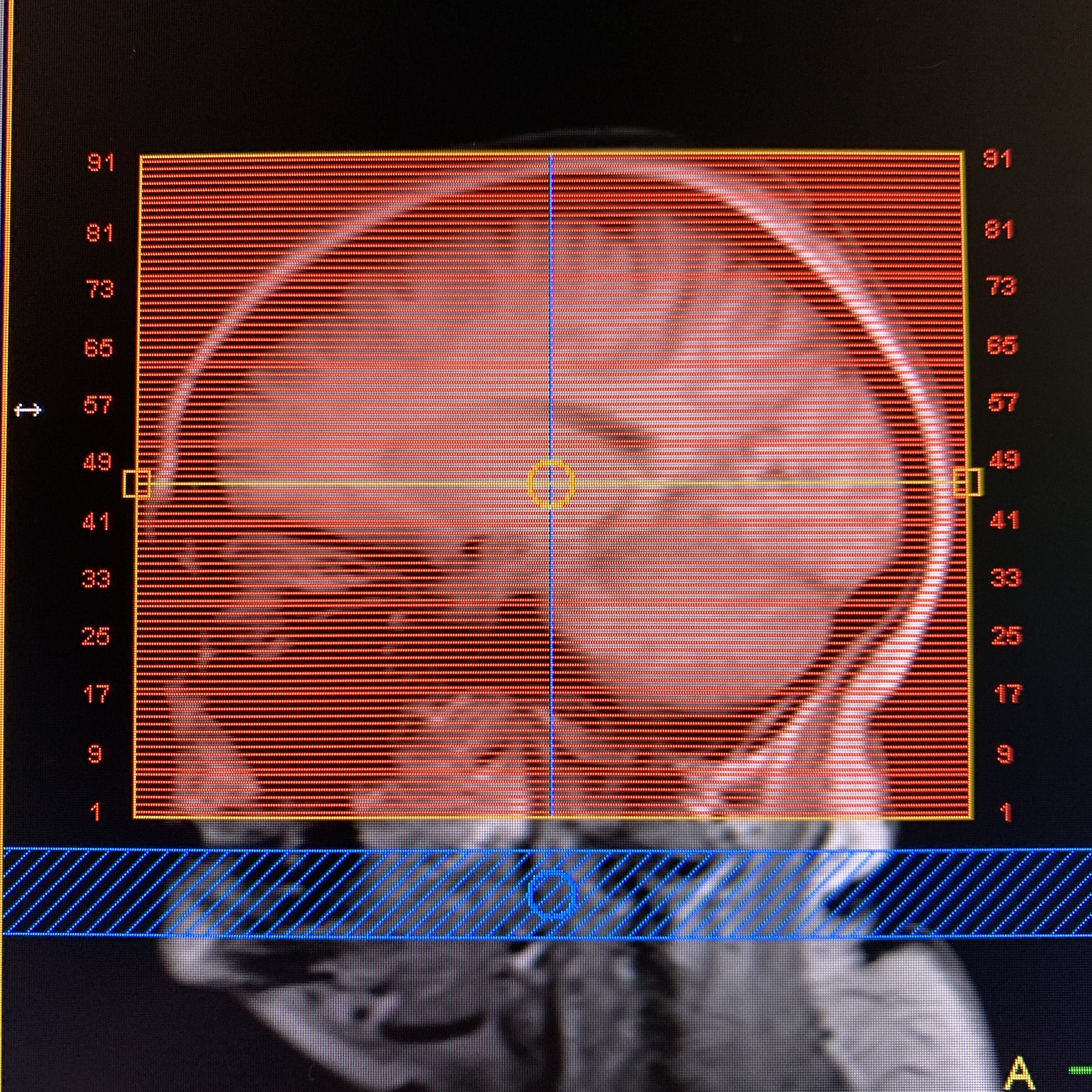

| AXIAL | T1 | M2D FFE | 2mm | -0.5mm | None | 23cm | Whole head,vertex to skull base |

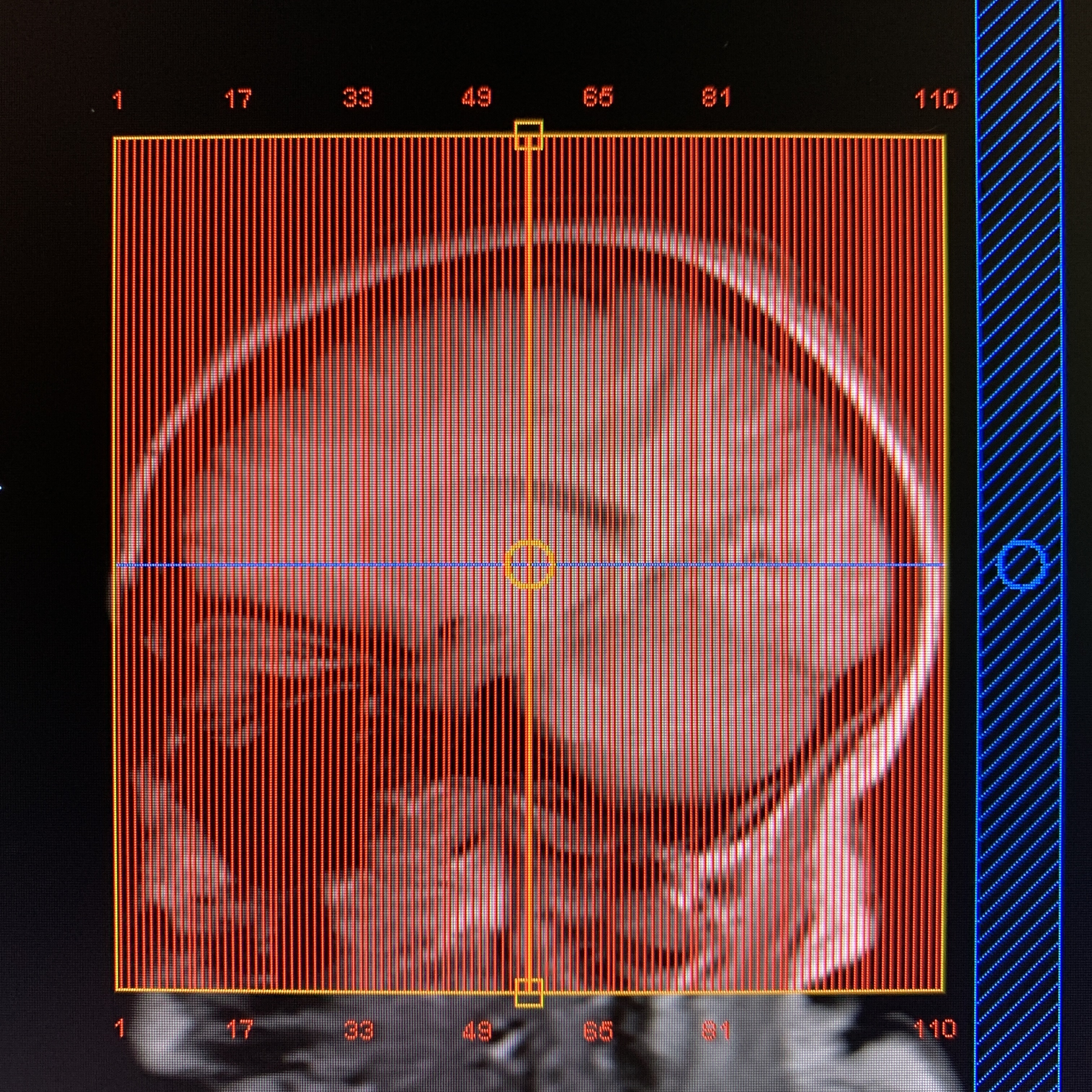

| COR | T1 | M2D FFE | 2mm | -0.5mm | None | 23cm | Frontal through occipital, skin to skin |
Contrast injection
| Plane | Weighting | Mode | Slice | Gap | FAT SAT | FOV | Notes |
|---|---|---|---|---|---|---|---|
| SAG | T1 | 3D CE-MRV | ~1 mm | ~ 0 mm | No | 24cm | See note above |
