MR Novartis CCNP520A2202J (5175) (Subject) Research Protocol
Last updated: 4/12/19
Charge as: Brain WO, No Read
Scanner preference: MR4 only
Coil: Head coil
Sequence | Change Parameters? | Change # slices? | Coverage/ Angulation | Notes |
---|---|---|---|---|
SAG 3D T1 TFE | NO | NO | Be sure to cover the brain both LR and AP. | Be sure to cover the brain both LR and AP. Leave about 15 mm from top of the head to the top of the FOV. SEE IMAGE BELOW |
Axial FLAIR | NO | NO | Angle parallel to AC-PC line | Acquisition stack must fully cover subject's brain, starting at the vertex down to the cerebellum. SEE IMAGE BELOW |
Axial T2* GRE | NO | NO | Same as Axial Flair | Same as Axial Flair |
Dual Echo PD/T2 | NO | NO | Same as Axial Flair | Same as Axial Flair |
AX DWI | NO | NO | No angle | No angle. Send source images to PACS |
AX DTI | NO | NO | No angle | No angle. Send source images to PACS |
AXIAL FIELD MAP | NO | NO | Angulate parallel to AC-PC line, then tilt 15 degrees toward TOP of head | Angulate parallel to AC-PC line, then tilt 15 degrees toward TOP of head. Send source images to PACS. SEE IMAGE BELOW |
2D AXIAL fMRI RESTING | NO | NO | Same as Axial Field Map | Same as Axial Field MapInstruct subject to KEEP EYES OPEN AND STAY AWAKE for duration of scan (10 minutes). Send source images to PACS. |
REPEAT SAG 3D T1 TFE | NO | NO | Same as prior | Same parameters as prior. |
![MR Novartis CCNP520A2202J (5175) (Subject) Research Protocol positioning image](/sites/default/files/2019-05/Screen%20Shot%202019-05-01%20at%2012.49.12%20PM.png)

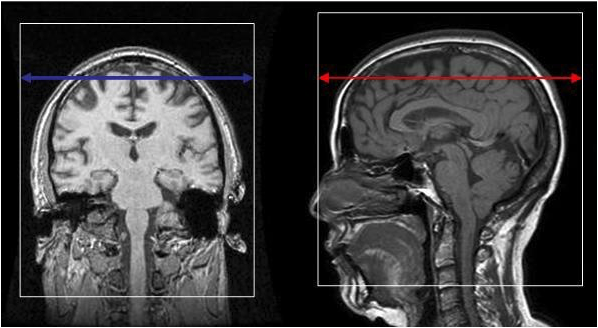

SAG 3D T1 TFE
Be sure to cover the brain both LR and AP. Leave about 15 mm from top of the head to the top of the FOV.
![MR Novartis CCNP520A2202J (5175) (Subject) Research Protocol positioning image](/sites/default/files/2019-05/Screen%20Shot%202019-05-01%20at%2012.51.55%20PM.png)

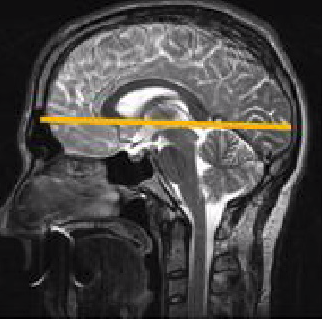

Axial FLAIR
Acquisition stack must fully cover subject's brain, starting at the vertex down to the cerebellum
![MR Novartis CCNP520A2202J (5175) (Subject) Research Protocol positioning image](/sites/default/files/2019-05/Screen%20Shot%202019-05-01%20at%2012.53.22%20PM.png)

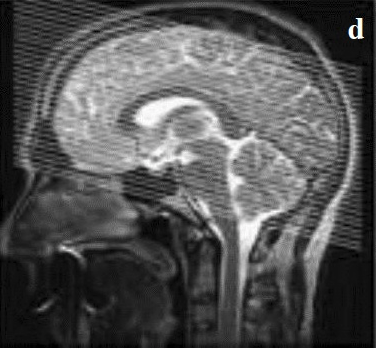

AXIAL FIELD MAP
Angulate parallel to AC-PC line, then tilt 15 degrees toward TOP of head. Send source images to PACS
