Fluorescence microscopy has been instrumental to biomedicine but is intrinsically limited in spatial resolution (to ~200 nm) by the diffraction of light. In the last two decades or so, a growing list of imaging techniques have been introduced to circumvent the diffraction limited resolution – hence the term ‘superresolution microscopy’ (SRM) [1,2].  A subset of existing SRM techniques is based on sub-diffractive localization of single molecule emitters and commonly referred to as ‘Single-molecule localization microscopy’ [3] (SMLM, Figure 1). The best-known examples of SMLM include photoactivated localization microscopy (PALM) [4,5], stochastic optical reconstruction microscopy (STORM) [6], point accumulation in nanoscale topography (PAINT) [7] and its recent derivation DNA-PAINT [8].

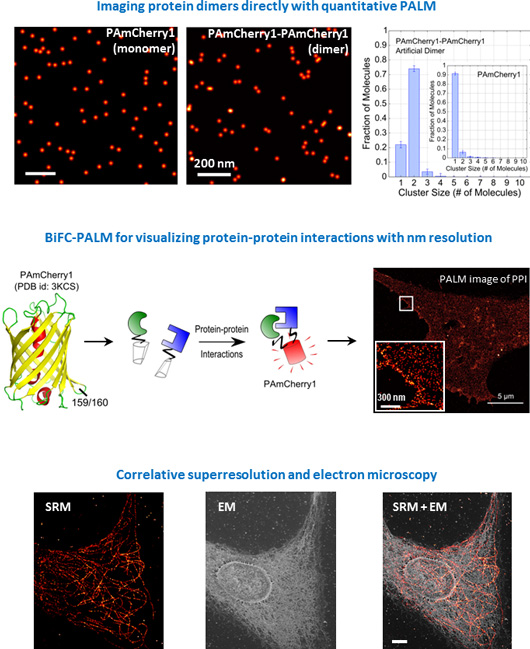

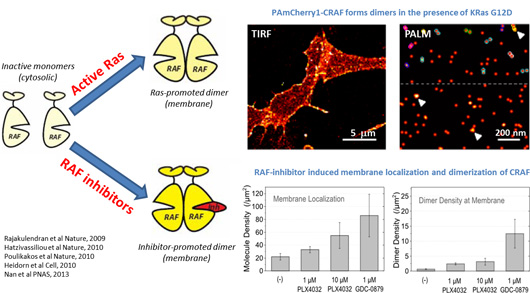

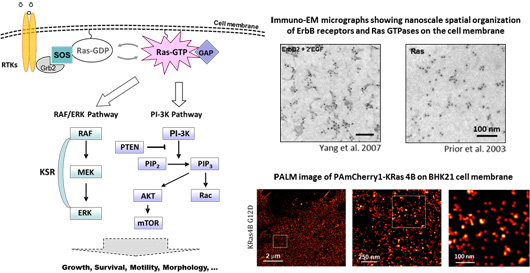

All SMLM-based SRM techniques – PALM, STORM, and (DNA-)PAINT – employ mechanisms for efficient single-molecule ‘blinking’, such that signals from single emitters are spatially separated for precise localization. Otherwise, the densely packed fluorophores (as in most biological staining) would emit fluorescence signals all at once to yield a diffraction-limited (‘smeared’) image. PALM and STORM take advantage of photoswitching of certain fluorescent probes, such as photoactivatable fluorescent proteins (e.g. PAmCherry and mEos) [9] or small molecule organic dyes (e.g. AlexaFluor 647) [10] in combination with specialized imaging buffers. In PAINT, single-molecule localization events arise from transient binding events that lead to detectable fluorescence, for example when Nile Red molecules bind to lipid bilayers [7]. Nile red is barely fluorescent when dissolved in water but turns fluorescent when inserted into a hydrophobic lipid bilayer [11]. In DNA-PAINT, transient hybridizations between a pair of short, complementary oligonucleotides yield bursts of detected fluorescence events [8]. In all cases, a ‘super-resolved’ image can be reconstructed by combining the locations of all the detected single molecule events.

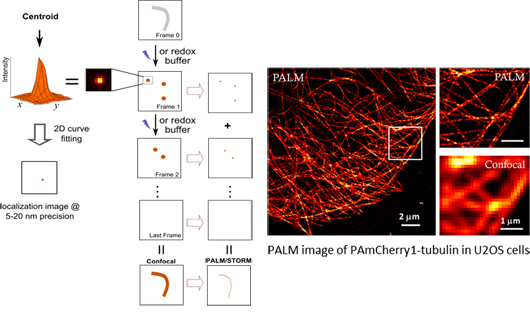

For each fluorescent molecule, it’s lateral (x, y) position can be localized to a precision roughly equivalent to the half width of the diffraction limited image (typically 120-160 nm depending on the wavelength and lens aperture) divided by the square root of the number of detected photons [12]. Considering mechanical drift, pixelation, and other factors, each fluorescent molecule could be localized to ~10 nm or better precision with as few as 500-1,000 photons collected. This translates into 20-25 nm spatial resolutions if the sample labeling is sufficiently dense (to achieve Nyquist sampling). In fact, common structures such as the microtubule network in cultured mammalian cells can be imaged at similar spatial resolutions using PALM, STORM, or DNA-PAINT (Figure 2). We use all three techniques in our research depending on the application.

The image of a single fluorophore not just reports its lateral (x, y) position but also encodes its axial (z) information. Depending on its z position, the resulting image may be slightly different, but the difference can be small, making it difficult to accurately extract the z position from a ‘normal’ single-molecule image. One strategy for precise three-dimensional (3D) localization of single molecules is to introduce astigmatism, such that the single-molecules take very different shapes depending on their axial locations (e.g. below or above the focal plane). This can be achieved by inserting a cylindrical lens into the detection path (Figure 3, left), a relatively straightforward setup [14]. The astigmatism based strategy affords z-location precisions around 3x worse than in the x-y position (that is, 20-30 nm). More precise z-localizations (~10 nm) were achieved using single-photon interferometry (termed interferometric PALM or iPALM) [15] (Figure 3, right).

Both 3D localization mechanisms are applicable to all SMLM-based SRM. For example, we have used STORM with both astigmatism based 3D localization (Figure 4, left) and with iPALM (Figure 4, middle). The iPALM has also been combined with DNA-PAINT for ultrahigh resolution 3D imaging of nanostructures such as caveolae in cells (Figure 4, right). The Nan lab hosts both setups for 3D SRM (Thanks to Drs. Rainer Daum and Meike Pederson for helping acquire a commercial iPALM prototype).
